One shop. Every machine you need.
60′ × 120′ floor, 5-ton overhead crane, and a new piece of equipment most years. Cut, bent, rolled, drilled, milled, welded — steel, aluminum or stainless, all under one roof in Girard.
[ —•— EQUIPMENT LIST —•— ]
The machines on the floor.

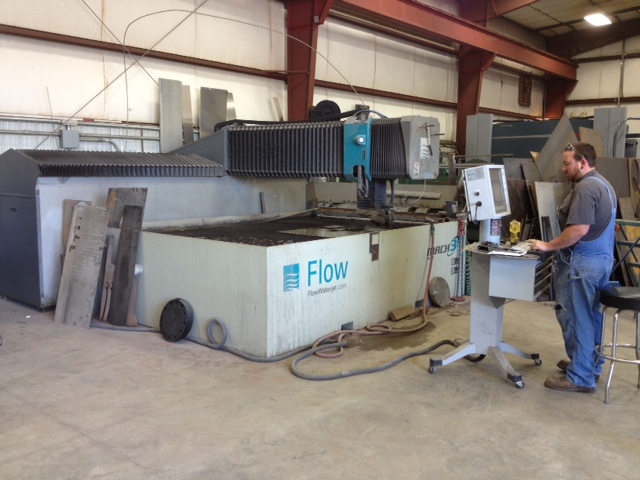

We keep buying new equipment to keep up with the work. The latest addition is a flow CNC water jet that cuts up to 8″ thick steel.
No.
Equipment
Spec
- 01 Betenbender Shear 1/4 × 10′
- 02 Sidney Lathe 16″ × 60″
- 03 American Hole Wizard 4′ Radial Arm Drill

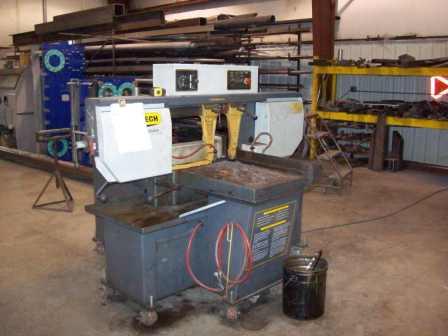

- 04 Hydmeck Band Saw S-20

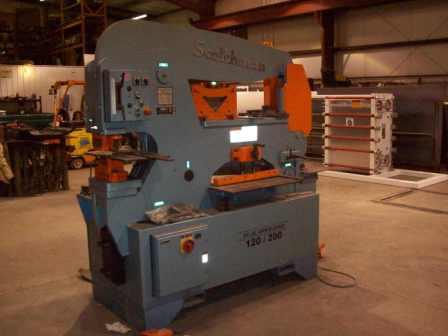

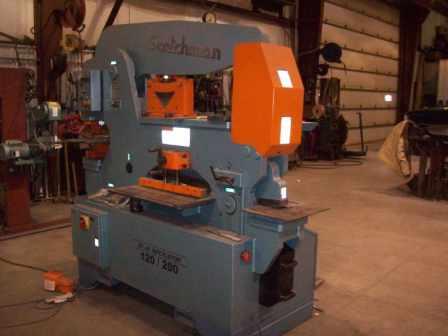

- 05 Scotchman Ironworker 120 / 200

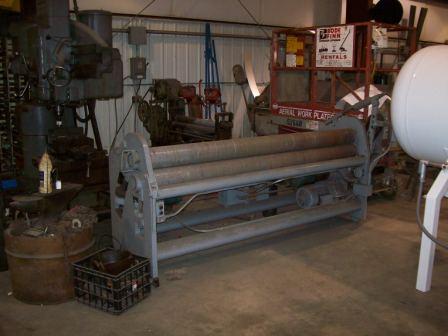

- 06 Shop Made Sliproll 1/4 × 8′

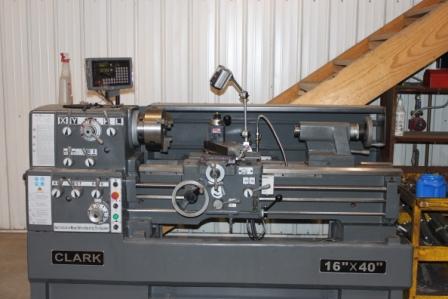

- 07 New Clark Lathe —

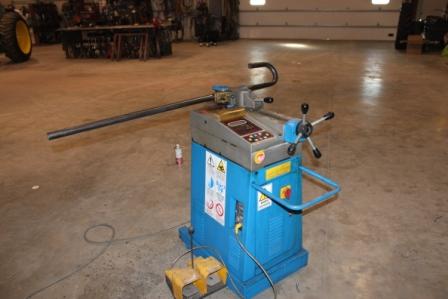

- 08 Ercolina Mega Pipe Bender 030
- 09 Ercolina Ring Roll —

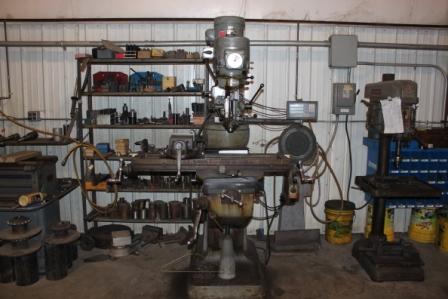

- 10 Bridgeport Mill 9″ × 42″

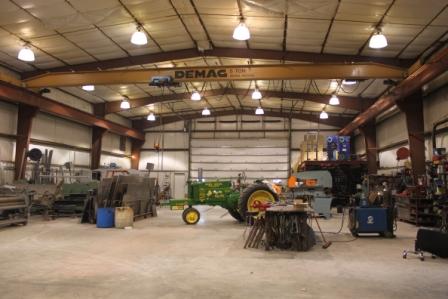

- 11 Demag Overhead Crane 5 Ton

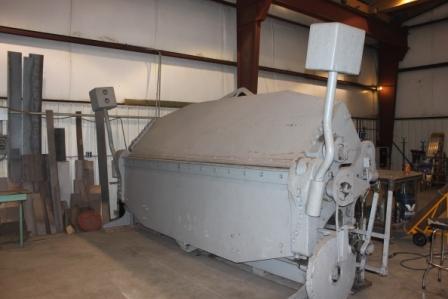

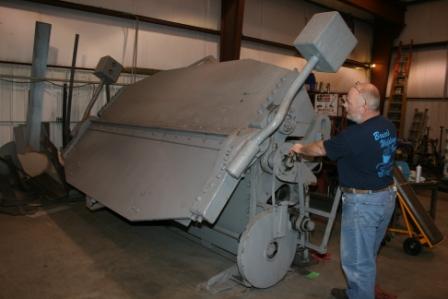

- 12 Chicago Dries & Krump Apron Brake 1/4″ × 12′

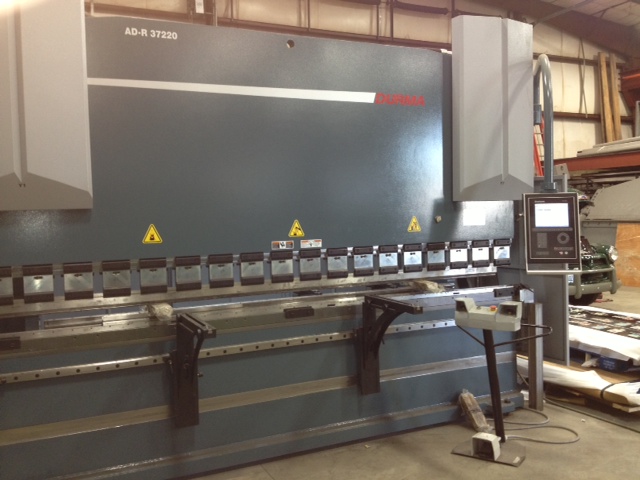

- 13 Pressbrake —
- 14 Water Jet —
[ —•— ON THE FLOOR —•— ]
Tools, in motion.
PL-001
PL-002
PL-003
PL-004
PL-005
PL-006
PL-007
PL-008
PL-009
PL-010
PL-011
PL-012
PL-013
PL-014
PL-015 [ —•— START A JOB —•— ]
Have a part to fabricate?
Bring a print, a photo, or a napkin sketch. Call Bruce — we’ll work it out at the bench.
